A kitchen faucet sample approval matrix turns a showroom decision into a repeatable project specification. For apartment, hotel and rental portfolios, the sample should be checked with the actual sink, counter and cabinet—not approved from a finish chip or catalog image alone.
Start with the live FaucetTaps kitchen sink faucet range. Freeze the exact model and revision before the mock-up so dimensions and included parts do not drift between quotation and production.
Define One Approval Matrix
Create rows for model identity, finish, sink fit, spout reach, handle movement, mounting stability, supply connections, spray operation when present, cleaning access, packing and spare parts. Add columns for requirement, evidence, result, approver, date and corrective action.
A real reference such as Modern Kitchen Sink Faucet CZ811202 can anchor the review, but all acceptance values must come from the current product information and project mock-up.
Measure the Working Envelope

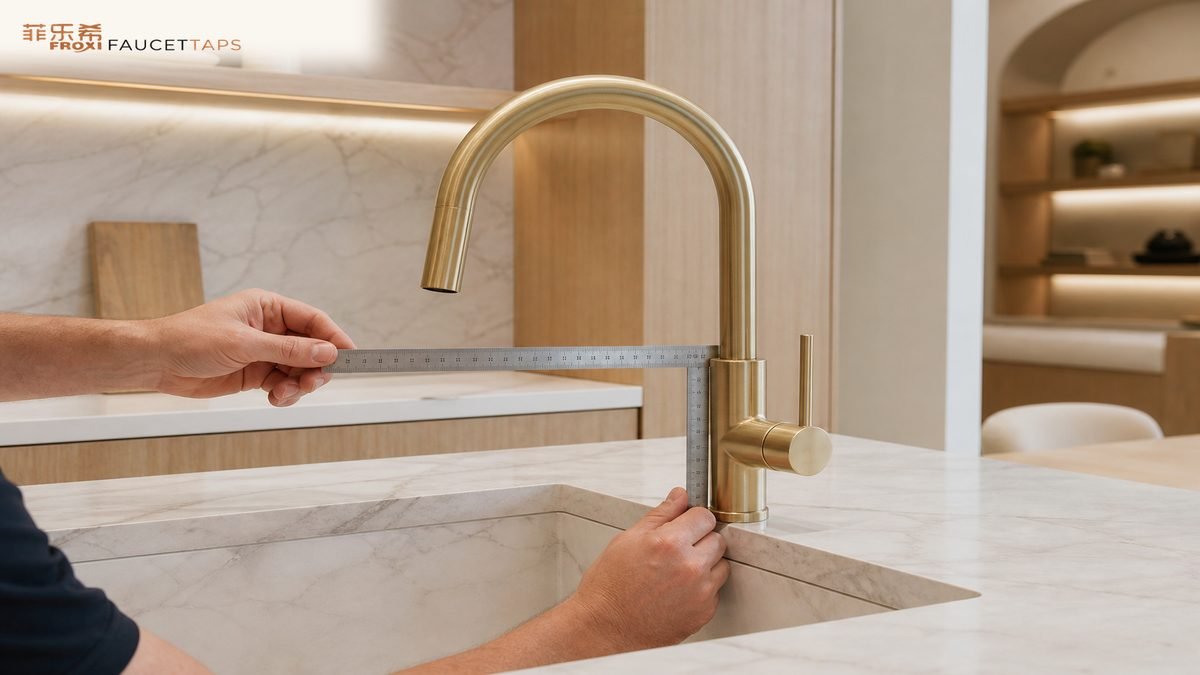

Measure from the faucet centerline to the water landing point, sink edges and backsplash. Confirm that the outlet reaches the usable bowl without directing flow onto the rim. Operate the handle through its full range and check clearance from the wall, ledge and window.
Use the production-intent sink depth and mounting position. A support image or dimension sketch should record the accepted geometry so installers can reproduce it across room types.
Test Mounting and Cabinet Coordination
Install the sample through the specified counter and sink build-up with the supplied fixing kit. Check base stability under normal operation and confirm that the installer can tighten the mounting hardware without removing fixed cabinet parts.
Below the sink, route hot and cold hoses without tension, sharp bends or contact with drawers, bins and the waste assembly. Record the shutoff interface, hose length and sealing parts rather than relying on a generic nominal connection.
Review Controls and Daily Use
Run hot, cold and mixed water. Check control direction, temperature progression, flow behavior and any pull-out or pull-down hose return. Use common pots and containers from the project brief to confirm reach and clearance.
Compare a second valid option such as Modern Kitchen Sink Faucet CZ811002 only under its own matrix. Similar appearance does not prove identical mounting, movement or connection details.
Convert Observations Into Pass-or-Revise Rules
A useful matrix does not stop at comments such as “looks acceptable.” Give each requirement a clear pass condition and an evidence type. Geometry items can use measured dimensions and annotated photographs. Operation items can use a short test record. Finish items can refer to the signed finish board. Connection items should identify the exact hose, valve interface and seal that were installed.
Where a result is conditional, record the condition. For example, a faucet may pass only with a defined hole centerline, a specific sink setback or a cabinet without an upper drawer. These conditions belong on the approved room-type drawing and installer briefing, not only in meeting notes.
Control Revisions After the Mock-Up
Place the faucet model, drawing revision, finish code, sample date and approver on every matrix page. If the sink, countertop thickness, cabinet layout, cartridge, hose set or mounting kit changes, identify which checks must be repeated. A commercial substitution should never inherit approval merely because its exterior silhouette is similar.
Maintain one controlled PDF for the approved matrix and archive superseded versions. Procurement, factory inspection and site teams should all reference the same revision. This prevents an early sample photograph from overriding the later signed requirements.
Carry Approval Into Production and Installation
Translate the matrix into receiving and pre-shipment checkpoints. Sample the model label, finish, included parts, mounting hardware and connection set from multiple cartons. At site, provide installers with the approved centerline, tightening access, hose route and protection instructions. The inspection does not need to repeat the entire mock-up, but it should detect changes that would invalidate it.
For multi-unit projects, keep one approved faucet-and-sink assembly or a dimensioned reference set until installation is substantially complete. Use it to resolve questions without guessing from photographs. At handover, link the installed model to care guidance and replacement-part records so facilities teams can service the same specification later.
Use the Matrix During Supplier Communication
Send the matrix with the request for quotation and ask the supplier to identify any line that cannot be confirmed from current drawings. During sampling, keep open items visible instead of converting them into assumptions. When a correction is proposed, record whether it changes performance, installation, packing, cost or lead time and obtain approval from the responsible party.
Before bulk release, require a final supplier acknowledgement against the signed revision. This creates a practical bridge between design approval and production control. It also gives the receiving team a concise reference for distinguishing an approved variation from an unintended substitution.
Control Finish and Cleaning
Review the sample beside sink accessories and cabinet hardware under project lighting. Record hue, gloss and brushing direction against the approved finish board. Test the planned cleaning cloth and product on an agreed sample area, then issue prohibited-care instructions for handover.
Confirm Documentation and Release
The official ASME A112.18.1/CSA B125.1 page describes the scope of plumbing supply fittings. Confirm the applicable edition, destination requirements and supporting documentation with the project authority.
Photograph the completed mock-up, underside connections, labels and approved finish. Sign the matrix only after every required correction is closed, and attach it to the purchase order and pre-shipment inspection plan.
