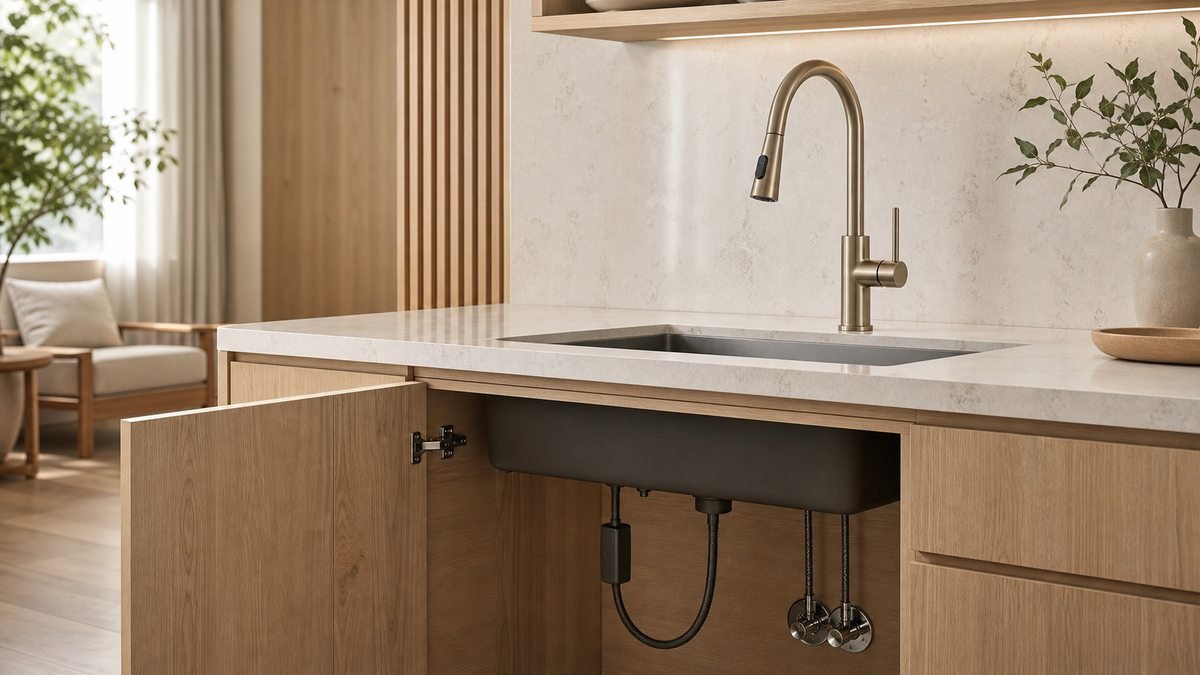

Pull-down kitchen faucet hose clearance is easy to miss when buyers approve only the faucet above the worktop. In a compact apartment, hotel pantry or rental kitchen, the hose and counterweight share a small cabinet with the sink bowl, waste trap, shutoff valves, shelf rails, bins and cleaning supplies. If that moving path is blocked, the spray head may retract slowly, stop short or require the user to push it back by hand.
Start with the real FaucetTaps kitchen sink faucet range, then review the selected faucet together with the actual sink base. A product drawing should be paired with the sink depth, worktop thickness, cabinet width and every fixed obstruction below.
Map the Cabinet Before Freezing the Faucet
Ask the cabinet supplier for a section through the faucet centerline. Mark the sink bowl, mounting shank, waste outlet, trap, hot and cold shutoffs, drawer backs, shelves, disposer if used and any pull-out waste system. The drawing should show the usable void, not only the outside cabinet dimensions.
A model such as Modern Kitchen Sink Faucet CZ811202 can be used as a project reference, but the quotation and sample must confirm the exact pull-down configuration, hose length and mounting components selected for the project.
Reserve the Moving Hose Envelope

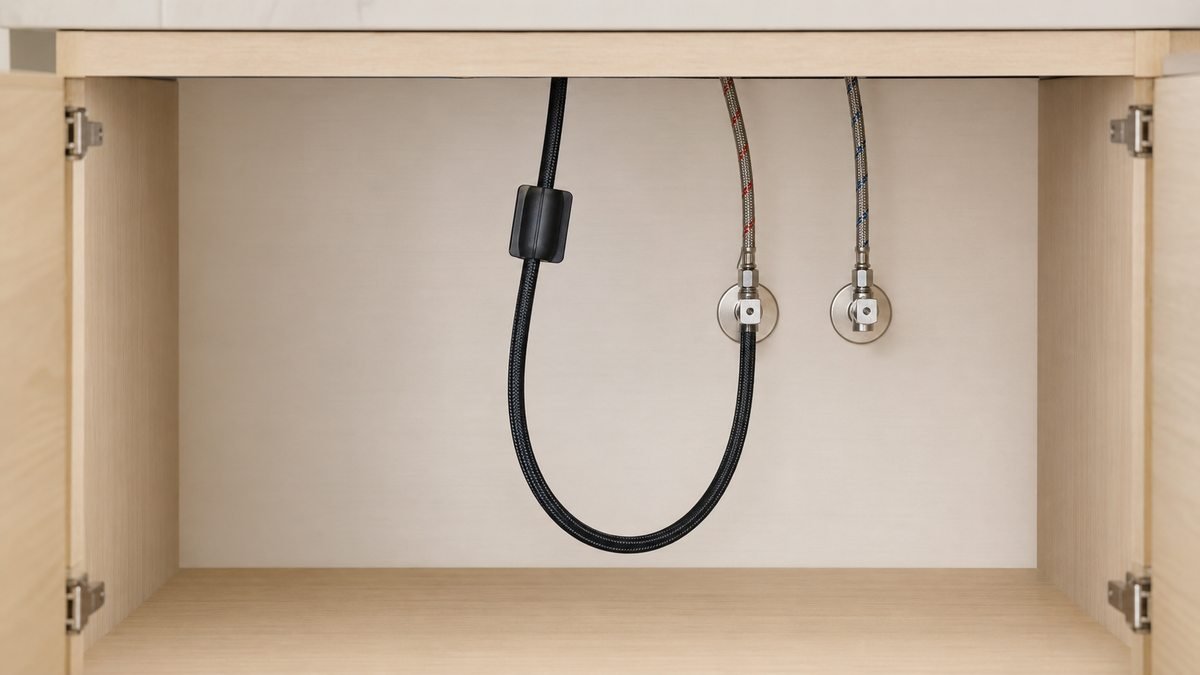

The retractable hose needs a clean vertical loop and a free zone around the counterweight. It should not rub the trap, loop around a valve, strike a drawer rail or fall behind a storage bin. The supporting image shows the principle: the hose hangs naturally and has open space through its full travel.
Do not treat the counterweight as a fixed decorative part. Pull the spray head to its practical maximum reach, release it from several positions and observe the weight path. The weight must move without hitting the cabinet floor or catching on another component.
Coordinate Mounting and Hose Travel Together
A loose faucet base changes the hose centerline and can create new rubbing points. Confirm worktop thickness, mounting-hole diameter, reinforcement and access for the fixing nut. The FaucetTaps guide to pull-down faucet mounting stability explains the mounting checks that should accompany hose-path approval.
Place shutoff valves where the installer can reach them while keeping their handles and supply hoses outside the moving envelope. Route hot and cold hoses with gentle bends and secure only the fixed lines. Never tie the pull-down hose to supply lines to make the cabinet look tidy.
Build a Real Cabinet Mock-Up
Install the production-intent faucet on the actual sink and cabinet type, including the planned trap, shelving and bins. Cycle the spray head repeatedly from straight ahead and both sink corners. Check that it docks consistently, that the hose does not twist and that the counterweight clears every obstruction.
Repeat the test after loading the cabinet as the operator expects to use it. A clear empty mock-up can fail once housekeeping supplies or a waste bin occupy the hose path. Issue a simple “keep-clear” zone in the cabinet handover information.
Confirm Performance and Documentation
Faucet and pull-out spray assemblies may fall within destination plumbing-supply fitting requirements. Buyers can review the official ASME plumbing supply fittings page and then confirm the applicable project edition, product scope and certification evidence with the local consultant. Standards compliance does not replace a cabinet fit test.
Inspect Packing, Installation and Handover
Pack the hose, spray head and counterweight so they cannot scratch the finish. The installation sheet should show the counterweight position and the required free travel. At receiving, verify that the correct weight, hose and mounting pack are present before faucets are distributed to rooms.
During handover, test retraction in a sample of completed kitchens with all internal cabinet fittings installed. Record the faucet model and replacement hose reference so maintenance teams can order the correct service part later.
Request a Hose-Clearance Review
Send FaucetTaps the sink drawing, cabinet section, faucet shortlist, waste layout, storage plan, project quantities and destination requirements. Our team can discuss pull-down kitchen faucet hose clearance and a production-intent cabinet mock-up before bulk release.
